The ECOWITT WS90 “Wireless 7-in-1 Electronic Sensor Array Haptic Rain Gauge and Ultrasonic Anemometer” has a place for a 25mm tube to sit on.
I couldn’t find an antenna mount with a 25mm tube, but the “20mm” galvanised pipe assortment fit just fine.
For this you need:
- 20mm Galvanised Pipe (400mm) use whatever length makes you feel happy. I won’t judge.
- 20mm Galvanised Tee
- 20 x 15mm Gavalnised Reduced Hex Nipple
- Galvanised Round Flange With 15mm Drill Mall
I ended up using the 15mm flange because there wasn’t any 20mm on the shelf, and I needed a fitting to go between the Tee and the plate anyway.
Because the pipe’s open at the top, even if it’s covered by the WS90, I figured having the tee on the bottom to let things drain away from everything else seemed more sensible than forcing any water against the house.

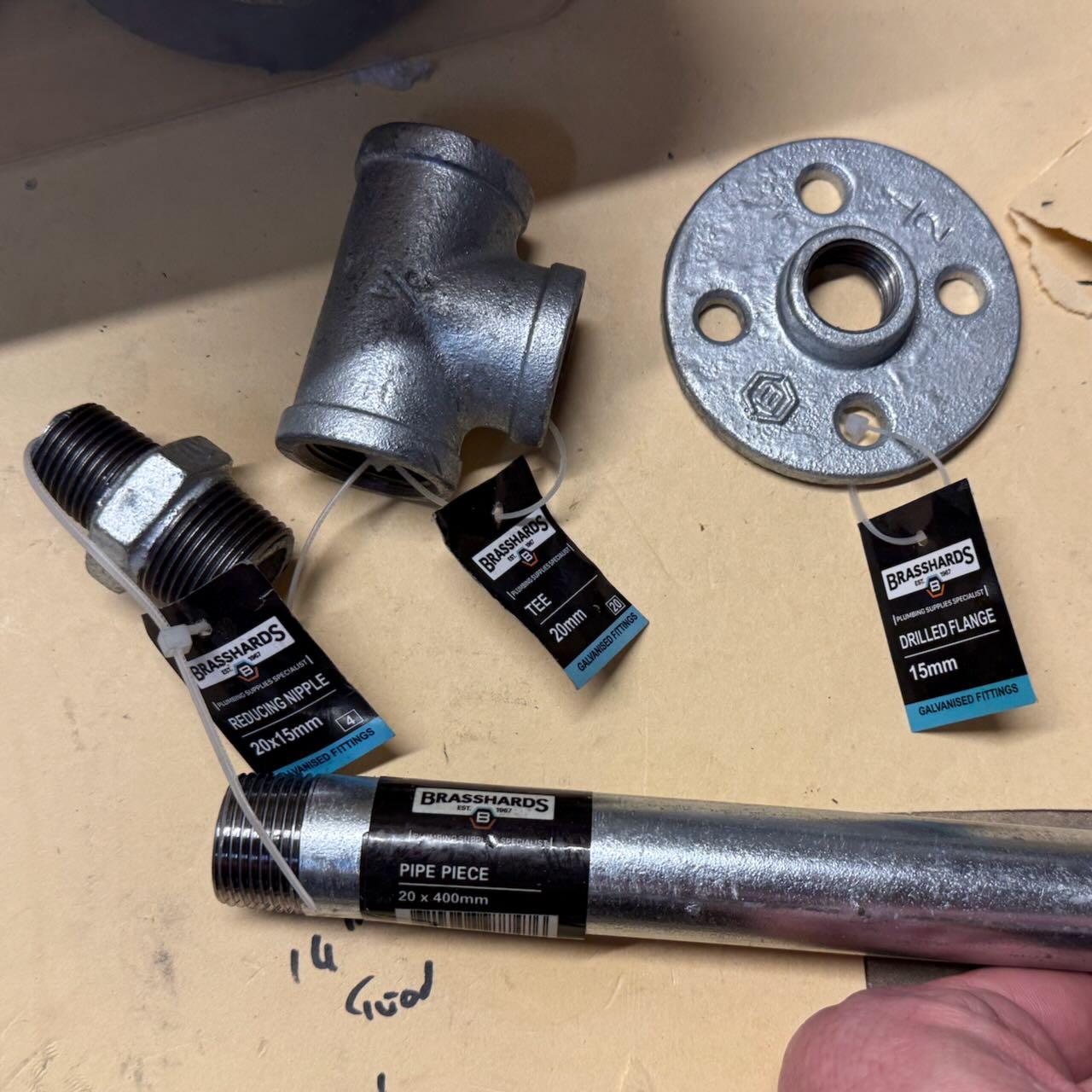

Here’s what the parts look like, for reference:

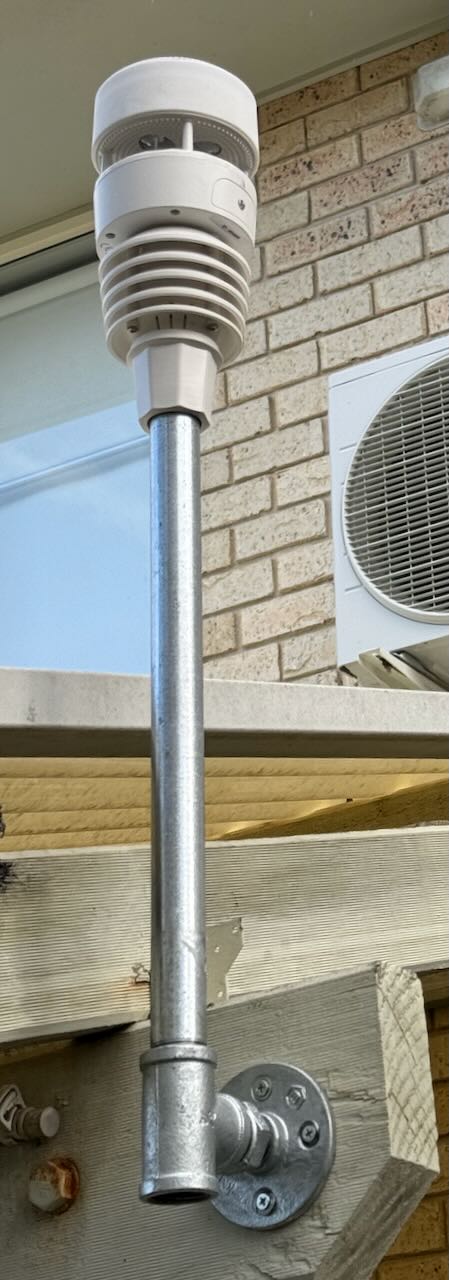

The whole lot cost me ~$20AUD, and looks like this when done:
I probably should space that flange off the wood a little, because drainage. But we know I won’t.
